Panou sigurante Volkswagen Phaeton (sub volan)

Unul dintre panourile cu sigurante ale Phaeton-ului se afla sub volan. Este panoul de sigurante la care se umbla cel mai des, care se refera la cele mai uzuale probleme.

La panourile de sigurante pot exista anumite diferente in functie de motorizari si an de fabricatie dar, in linii mari, cel de sub bord contine aproximativ aceleasi informatii la toate modelele.

Volkswagen Phaeton are aproximativ 150 de sigurante dispuse in diverse panouri.

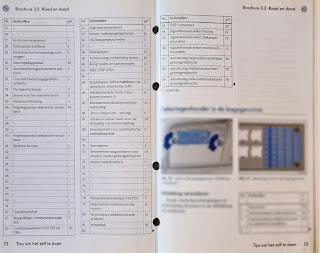

Panoul de sub bord contine 89 de sigurante, de puteri diferite. Mai jos puteti vedea doua foto cu semnificatia fiecarei sigurante, extrase din manualul Phaeton-ului meu.

Informatii sunt in limba olandeza (dutch) deoarece l-am adus din Rotterdam (3.2, V6).

In prima coloana este trecut numarul sigurantei, in ce-a de-a doua semnificatia acesteia iar in ce-a de-a treia puterea.

Mai jos aveti traducerea in limba engleza a functiilor respectivelor sigurante. Semnificatiile de mai jos nu sunt traduse din manualul meu (chiar daca sunt aproape identice) ci sunt o compilatie a unor fisiere de pe net referitoare la acest tablou de sigurante.

Reamintesc ca anumite semnificatii pot fi usor diferite functie de motorizare si an de fabricatie.

1.  10 A

- Wiper Park Position Heating Relay

- Left Washer Nozzle Heater

- Right Washer Nozzle Heater

2. 20 A

- Door control module, driver side

- Door Closing Control Module

- Door control module, rear

3. 20 A

- Door control module, passenger side

- Door Closing Control Module

- Door control module, rear

4. 20 A

- Fuse 18 (in fuse holder)

- Fuse 19 (in fuse holder)

- Fuse 20 (in fuse holder)

5. 5 A

- Roof Electronics Control Module

6. - open - - - -

7. - open 15 A - - 30

8. 25 A

- ABS Control Module (w/EDL)

- ABS Solenoid Valve

9. - open 5 A - - 30

10. 15 A

- Vehicle Electrical System Control Module

- Left Front Turn Signal Light

- Left Parking Light

11. 15 A

- Vehicle Electrical System Control Module

- Right Front Turn Signal Light

- Right Parking Light

12. 15 A

- Vehicle Electrical System Control Module

- Left Headlight Range Control Module

- Left Low Beam Headlight

- Left HID Lamp High Beam Control Module

- Left High Beam Headlight

13. 15 A

- Vehicle Electrical System Control Module

- Right Headlight Range Control Module

- Right Low Beam Headlight

- Right HID Lamp Hight Beam

14. 20 A

- Vehicle Electrical System Control Module

- Signal horn/dual tone horn

15. 5 A

- Brake Light Switch

- Rear Lid Control Module

- Engine Control Modlue (ECM)

- Control Module for towing sensor

- ABS Control Module (w/EDL)

16. 20 A

- Heater Control Module

17. 10 A

- Front Information Display Control Head Control Module

- Antenna Amplifier

18. 10 A

- Steering Column Electronic Systems Control Module

19. 10 A

- Access/Start Control Module

20. - open - -

21. - open - - - -

22. 5 A

- Engine Control Module (ECM) (engine code BAP)

- Engine Control Module (ECM) 2 (engine code BAP)

- Motronic Engine Control Module (ECM) (engine code BGJ)

23. 5 A

- Control module with indicator unit in instrument panel

24. - open - - - -

25. - open - - - -

26. - open - - - -

27. 5 A

- Control module with indicator unit in instrument panel

Data Link Connector (DLC)

- Seat Belt Tensioner Relay

28. 5 A

- Telephone/Telematic Control Module

29. 5 A

-Auxiliary Water Heating RF Receiver (where applicable

30. 10 A

- Climatronic Control Module

- Coolant Pump

- Left Heat Regulating Valve

- Right Heat Regulating Valve

31. 5 A

- Analog Clock/Control Module

- Rear Information Display Control Head

32. - open - - - -

33. 5 A

- Control module for navigation with CD-mechanism

34. 5 A

- Alarm Horn

35. 5 A

- Vehicle Electrical System Control Module

36. 10 A

- Vehicle Electrical System Control Module

37. 5 A

- Telephone/Telematic Control Module

38. - open - - - -

39. - open - - - -

40. 5 A

- Vehicle Electrical System Control Module

41. 5 A

- Access/Start Control Module

42. - open - - - -

43. - open - - - -

44. - open - - - -

45. - open - - - -

46. - open - - - -

47. - open - - - -

48. - open - - - -

49. - open - - - -

50. - open - - - -

51. - open - - - -

52. 5 A

- Seat Belt Tensioner Relay

53. 5 A

- Brake Pedal Switch (cruise control)

- Intake Air Temperature (IAT) Sensor (engine code BGJ)

- Mass Air Flow (MAF) Sensor (engine code BGJ)

- Mass Air Flow (MAF) Sensor 2 (engine code BGJ)

- Brake Booster Relay

54. 5 A

- Control module with indicator unit in instrument panel insert

55. 10 A

- Airbag Control Module

- Engine Control Module (ECM) (engine code BAP)

- Engine Control Module (ECM) 2 (engine code BAP)

- Motronic Engine Control Module (ECM) (engine code BGJ)

56. 5 A

-Oil Level Thermal Sensor

57. - open -

58. 15 A

- Left Front Fog Light

- Right Front Fog Light

59. 10 A

- Positive Crankcase Ventilation (PCV) Heating Element (where applicable)

60. 15 A

- Left Front Air Outlet Button

- Left Front (Center) Air Outlet Button

- Right Front (Center) Air Outlet Button

- Right Front Air Outlet Button

- Footwell/Cabin Temperature Differential Button

- Left Rear Center Console Air Outlet Button

- Right Rear Center Console Air Outlet Button

61. 5 A

- ABS Control Module (w/EDL)

62. - open - - - -

63. 5 A

- Vehicle Electrical System Control Module

E1 - Light Switch

- Left Headlight Range Control Module

- Right Headlight Range Control Module

- Telephone/Telematic Control Module

- Brake Booster Control Module

- Left Distance Regulation Sensor

- Right Distance Regulation Sensor

- Control Module for Distance Regulation

64. 5 A

- Steering Column Electronic Systems Control Module

65. 10 A

- Recirculation Pump

66. 5 A

- Rear Window Shade Control Module

- A/C Compressor Regulator Valve

- Climatronic Control Module

67. 10 A

- Tiptronic Switch

- Selector Lever Park Position Lock Switch

- Multi-Function Transmission Range (TR) Switch

- Transmission Control Module (TCM)

- ASR/ESP Button

68. 5 A

- Shift Lock Solenoid

69. - open - - - -

70. 5 A

- Servotronic Control Module

71. 10 A

- Driver‘s Heated Seat Control Module

- Passenger‘s Heated Seat Control Module

72. 5 A

-Sensor for Air Quality

73. - open - - - -

74. - open - - - -

75. - open - - - -

76. - open - - - -

77. - open - - - -

78. 5 A

- Brake Pedal Switch (cruise control) (where applicable)

79. 15 A

- 12V outlet -2- (in center console), front

80. 15 A

- 12V outlet -3- (in center console, rear)

81. 30 A

- Power Sunroof Control Module

82. - open - - - -

83. 20 A

- Digital Sound System Control Module

84. 15 A

- Cigarette Lighter

85. 15 A

- Left Rear Cirgarette Lighter

86. 15 A

- Right Rear Cigarette Lighter

87. 30 A

- Memory Seat/Steering Column Adjustment Control Module

- Driver‘s Heated Seat Control Module

88. 30 A

- Passenger Memory Seat Control Module

- Passenger‘s Heated Seat Control Module

89. 30 A

- Rear Memory Seat Control Module

Daca cunosteti si alte configuratii sau doriti sa completati lista de mai sus o puteti face intr-un comentariu.
